CAN-96-930-M12
CAN Alarm - CAN Alarm J1939-15; Large Panel Mount and M-12 Connector Termination. Panel mount piezo alarm that functions on the any CAN Network using the SAE J1939-15 protocol. It is arbitrary address capable, meaning it can claim a different address if an address conflict occurs. Rather than being "pre-canned" with specific sounds, the device is configurable for many sounds or tones via messages received on the network. This allows the alarm to be useful to communicate multiple audible tones/sounds for different alarm conditions. A detailed Communications Reference specifies tone types and specific PGN instructions for activating different tone and sound combinations on the network.
$134.22
Pricing
| Quantity | Price |
|---|---|
| 1-9 | $134.22 ea. |
| Get quote for quantities larger than 10 |
CE CompliantRevision 10.24
Specifications
| Mounting | Panel Mount |
|---|---|
| Operating Mode | Extra Loud Multiple Tone |
| Operating Voltage | 9-30 Vdc |
| Operating Frequency | 1800±250 Hz |
| Typical Operating Current | 30 mA at 9 Vdc 40 mA at 30 Vdc |
| Typical Sound Pressure | 60 ±5 dB(A) at 9 Vdc at 24 inches (61 cm), at 25°C 108 ±5 dB(A) at 30 Vdc at 24 inches (61 cm), at 25°C |
| Termination | M-12 Connector |
| Termination Strength | Pull test with a maximum of 22 pounds (10 kg) load |
| Operating Temperature | -20_C to +65_C |
| Storage Temperature | -40_C to +85_C |
| Surge Voltage | 20% over maximum rated voltage for less than 5 minutes |
| Reverse Voltage Protection | To the maximum operating voltage |
| Construction Materials | Case- Plastic _NORYL_ N-190, Flame Retardant UL 94-VO, Black Internal Circuit- Audio-oscillator and piezoelectric driver Diaphragm- Stainless Steel 305 |
| Gasket | Gasket 0.062" thick, 60 Durometer Neoprene |
| Construction Materials | ASTM B117 Certified - Withstands exposure to salt spray for 300 hours IP 68 Certified - Withstands water submergence and dust exposure Humidity- 95% relative humidity at +40_C continuously for 100 hours. Vibration- Withstands vibration between 0 and 55 Hz. on all axes. |
| Life Expectancy | 10 years under normal operating conditions. |
| Warranty | For a period of two years from the date of manufacture under normal operating conditions. |
| Notes | This product is not intended as a life safety device. |
| Terms and Conditions of Sale | Link here |

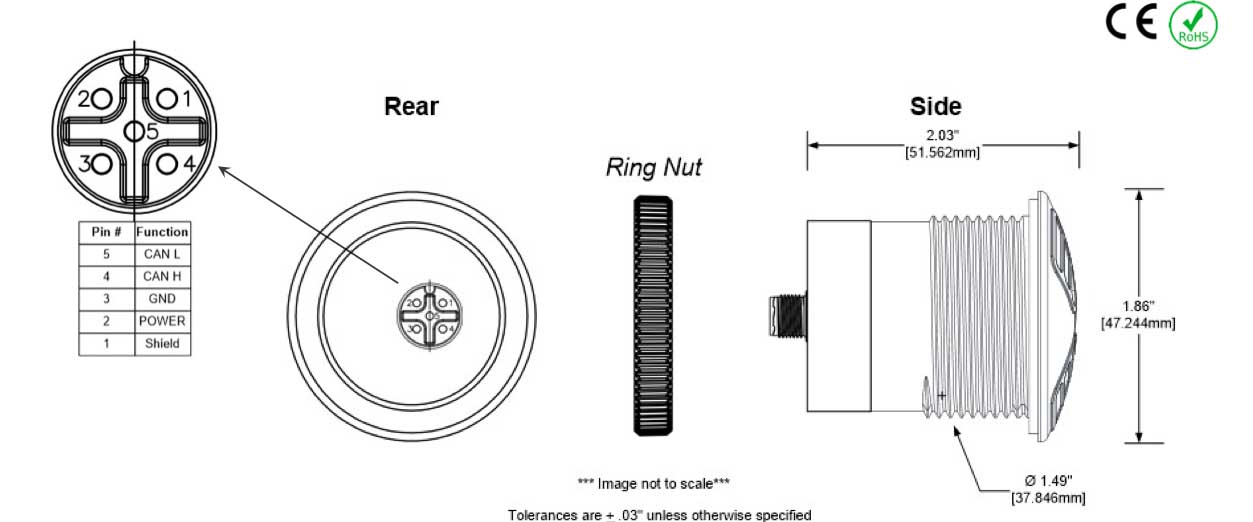

Dimensions
Dimensions
×![]()
